The fastest mini-split installation! HS24 (24,000 BTU) Quick 'n' Easy Mini-Split Heat Pump with -22F superheat and kink proof line set. Note: Needs 240v.
Couldn't load pickup availability
When 12,000 BTU Quick 'n' Easy just isn't enough...24,000 BTU Quick 'n' Easy 5-minutes-to-connect-everything monster 2-ton has arrived! Like paying high sales tax or high freight? Neither do we. See your delivered total at checkout.

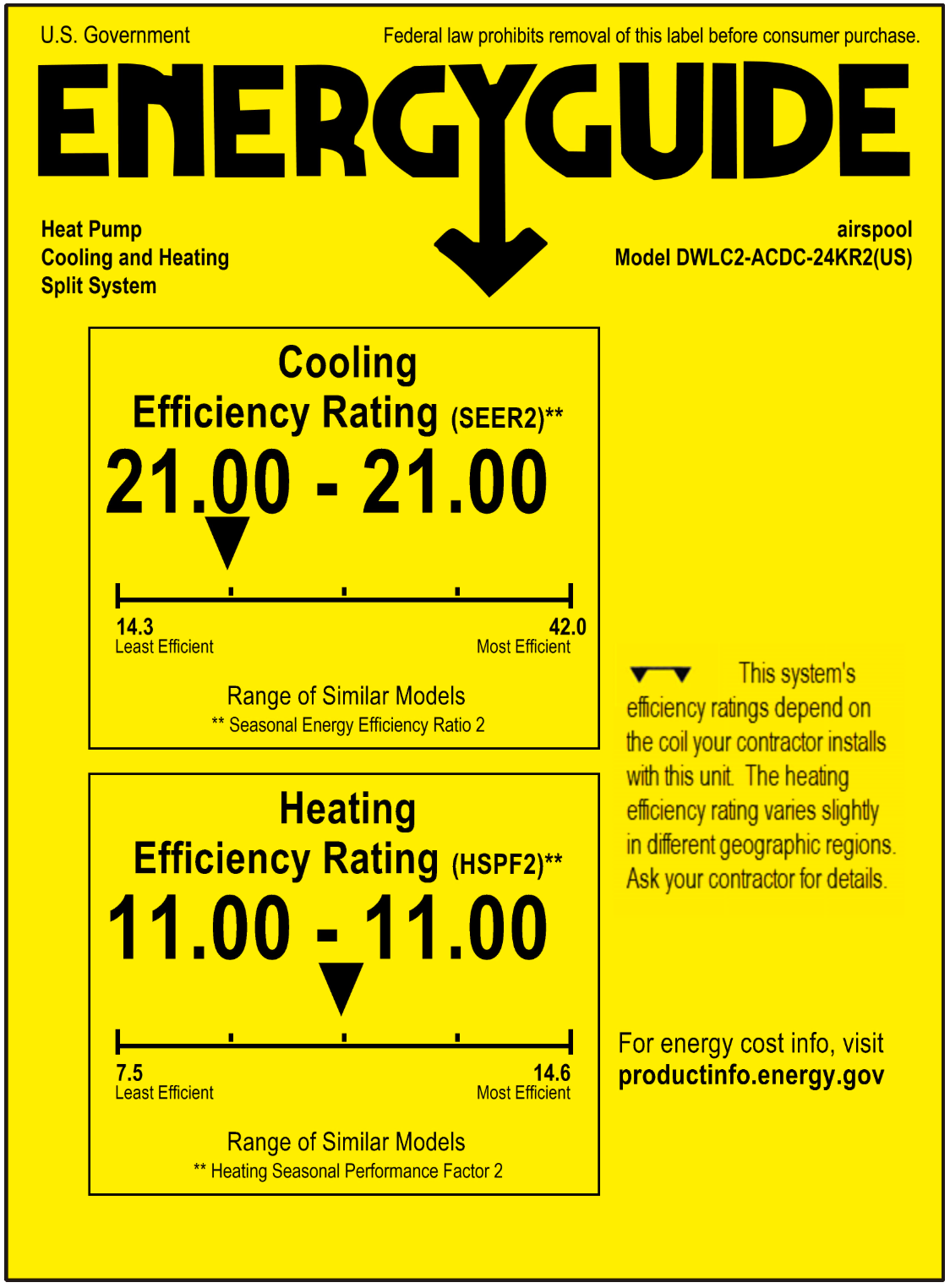

Airspool HS24 is a super-efficient air conditioner (21 SEER2)/heat pump (11.2 HSPF2) DC mini split that allows you to get free air conditioning or heating once you directly connect snap-on solar panels (90 -380v, with a recommended 3,300 watts). Get heat all the way down to -22 F! Get cooling up to 134 F! Airspool doesn't need batteries or external voltage controllers like past units to run solar. Instead, since the system's variable-speed motors are all DC, the same as the solar panels, no conversion is necessary. Cloudy or nighttime? No problem. Connect to standard 220-240 power, either 60 Hz, or even 50 Hz for overseas. Control from anywhere to change modes and temperatures, schedule on and off times, and see your electrical savings with the Airspool app. By making high-efficiency on-grid and free solar/off-grid air conditioning easy, we're working to make Airspool the best solar-powered air conditioner. And the best part? Now, this larger unit uses our patent-pending Quick 'n' Easy (TM) connection method. No vacuum pumps needed! No gauges needed! No wiring needed! We even pre-wire the power cord. The only tool you'll need as a drill. We even provide you with the drill bits, Phillips head, and holes saw. Check this out to see how it works. It'll save you around 7 hours. Save the environment and save money with Airspool. #hybridsolarairconditioner

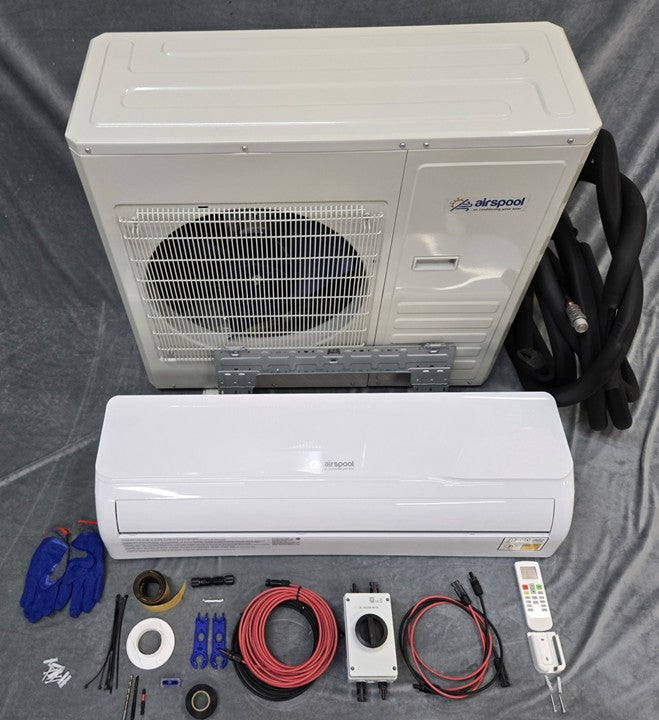

Here's what's included...
- The system (inside and outside units)
- Both free cooling and heating (yes, this is a heat pump)
- The Airspool app--schedule, control, and see your solar savings from anywhere in the world where you have either a cellular or an Internet connection
- 220/240v 20-amp (12 AWG) power cord with or without a plug--specify your needs at the time of order

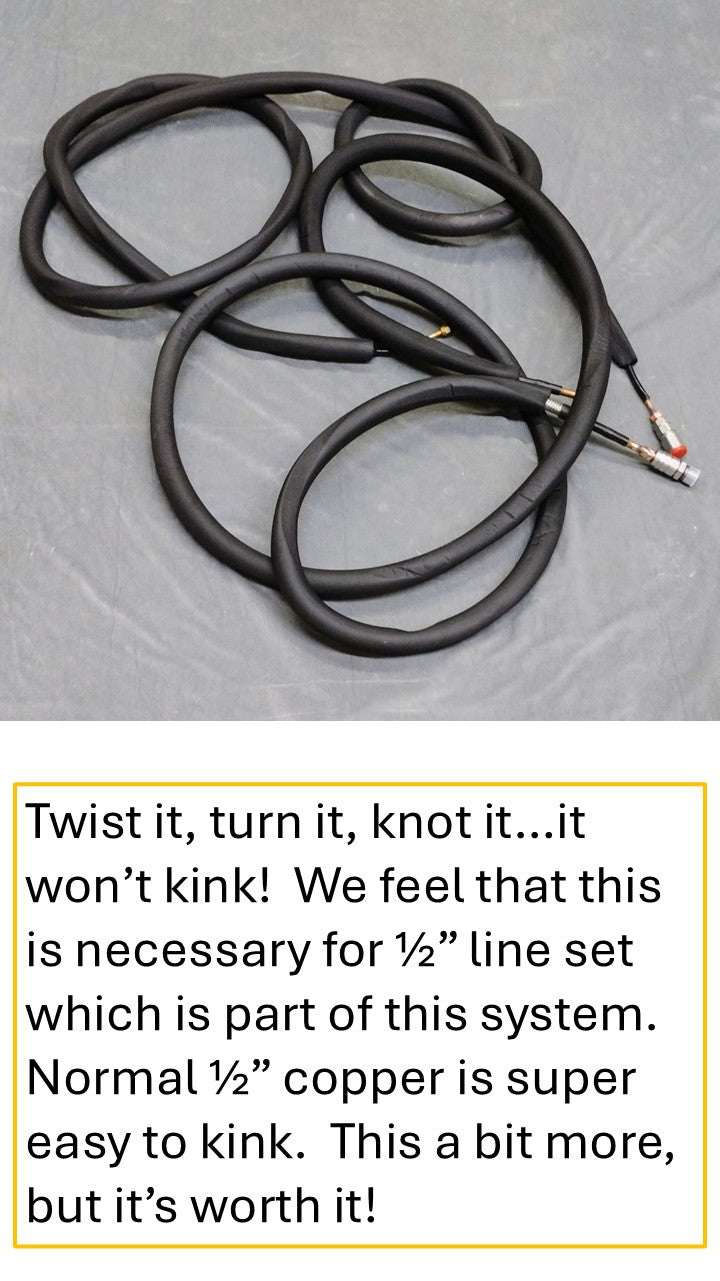

- Insulated flexible (won't kink!) 5-meter line set to connect the two units
- Dust caps for protecting valves pre-installation
- Remote control with batteries
- 7-meter 4-lead communication control wire between indoor and outdoor unit
- 10' condensate hose
- 2" wide x 50' long non-adhesive wrapping tape
- Wall flange and putty
- 2 MC4 disconnect tools, extra MC4 connectors
- Condensate hose
- Thorough native-English installation and maintenance instructions
- Discounted shipping--enter your location, guaranteed under $150 for delivery within the contiguous United States.
- Risk-free 1-year buy-and-try--fully refundable for a full year if you're not delighted with the performance of this unit. (And, after that, there's a 5-year compressor and 3-year parts standard warranty.)
Finally, these specific Quick 'n' Easy exclusives are your inclusives. We give you...
- The solar whips--4 ft. ($18.90 value)
- The DC isolator box ($33,60 value)
- 10m of solar wire ($45.65 value)
- Electrical tape (for sealing the insulation), zip ties (for keeping the line set in place, gloves (to more easily grip the self-sealing quick connectors), 36" of insulation for covering the connectors and the line set near them, a hole saw for your drill (for passing the line set through the wall, whether it's stucco, concrete, brick, or wood), the correct-sized drill bits and a Phillips screwdriver bit (for setting the inside unit's mounting plate and the holder for the remote), and a level ($75 value for all of these goodies)
- The pre-installed plug-and-play twist-to-connect-in-5-minutes line set, communications control wire, and power cord
The whole kit and caboodle and then some. Oh, and importantly, once we do all of this pre-installing and pre-charging behind the scenes for you, we test-run your unit to make sure everything's up to snuff before shipping, so you're ensured everything is working correctly.
What's not included? The solar panels and solar mounting hardware. You'll need around 3,300 w of solar. It doesn't need to be exact. If you are under, then just more grid power will be used. If you are over, there'll just be some voltage that doesn't ever convert to energy. No big deal either way. We don't offer the panels (as of now) because they're big, heavy, glass, and can't ship via UPS like the rest of the unit. We'll work to put you in touch with someone near you that can help with these. As of now, the solar panels should be around $1,300 plus mounting hardware.
So much free cooling. So little time, effort, money, and anxiety by doing it yourself, and no time, effort, money, or anxiety from begging a handy friend or hiring a 'contractor.'
Give our patent-pending, award-winning, soon-to-be-cherished-by-you Quick 'n' Easy system a whirl risk free. In addition to a 3-year parts, 5-year compressor warranty, this system also has a 1-year buy-and-try guarantee. Return it with no shipping charge and get all of your money back if it doesn't exceed your expectations. The Quick 'n' Easy is true DIY solar air conditioning.
Search 'Airspool Quick 'n' Easy' on YouTube to see how the connection is only 5 minutes and hear from others who have one.
Shipping & Returns
Shipping & Returns
UPS shipping for domestic shipments. International carrier varies. All products feature a 365 buy-and-try guarantee.
Dimensions
Dimensions
For detailed product information, including dimensions, see https://airspool.com/the-details.
Care Instructions
Care Instructions
The indoor unit's washable filter should be cleaned around once per quarter year. The coils on the indoor and outdoor unit should be cleaned as necessary. In most environments, once every 5 years is sufficient. Dusty and/or humid areas may require more frequent coil cleaning. Cables should be placed in conduit for best protection from the elements. Disconnects are are free.
