Airspool

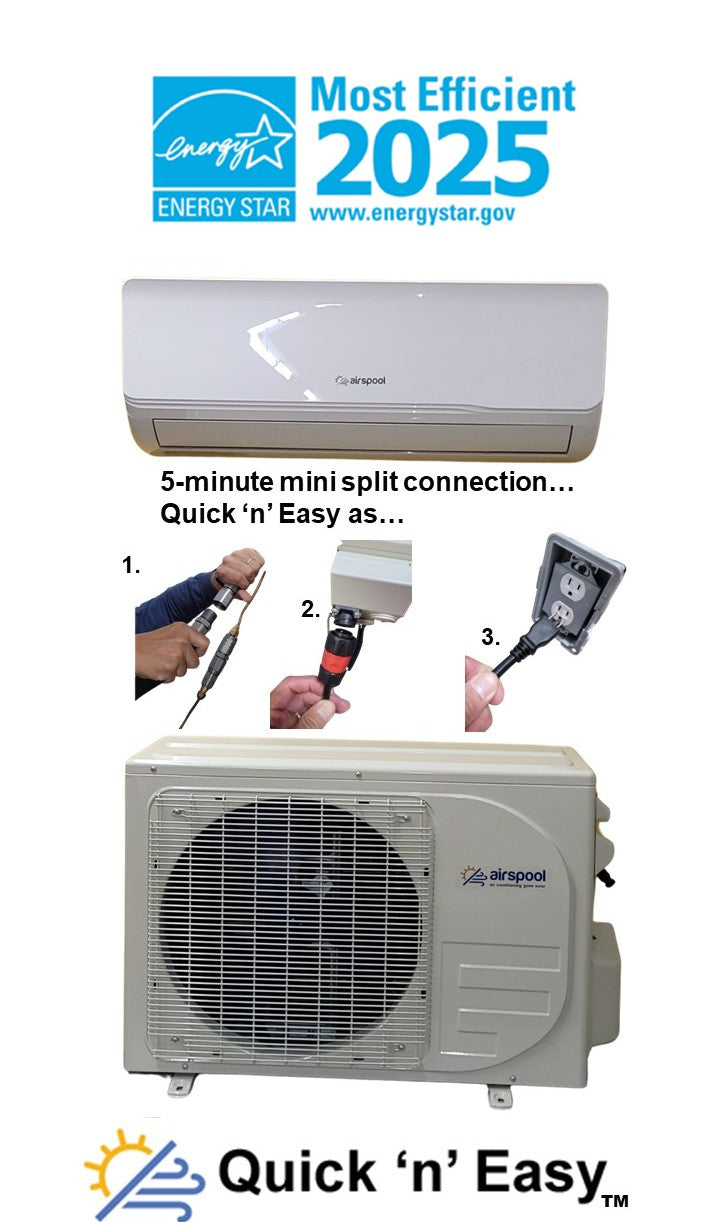

Airspool Quick 'n' Easy MS12 (12,000 BTU) solar air conditioner/heater. The first true DIY hybrid mini split. 5 minutes (literally) to connect everything. 12-month happiness guarantee!
Couldn't load pickup availability
Note: If you live in a place that seldom gets below 14 degrees Fahrenheit, keep reading. In a colder climate? Check out these new superheat units. The guaranteed success solar mini split. Pre 2025 tariff pricing! Save 30% off the shown price with the Inflation Reduction Act (using Form 5695's investment tax credit at tax time.) All the benefits of our standard high-efficiency 22 SEER2 for cooling and 9.5 HSPF2 for heating when running on grid, infinite-efficiency free free free when running off-grid, and a combination of the two when running hybrid using both solar and grid (or inverter) power. No batteries, inverter, or voltage controller is needed for the solar panels--just attach them in series and click them onto the outdoor unit. And, much, much less installation friction. In fact, you'll be able to attach the inside and outside unit in around 5 minutes. Literally, the only tool you need is a drill. How? The refrigerant lines twist to connect and are pre-charged with refrigerant (not just pre-vacuumed), so no vacuum pump, nitrogen tank, manifold gauge set, torque wrench, adjustable wrench, your brother-in-law, your neighbor, etc. are needed. Same with the included communications control wires...just twist to connect. And, the included UL-approved correct-amperage electrical cord is not only included, but it's also pre-installed. Thinking you might need to move your unit in the future? No problem! Yes, this is a portable mini-split. So, if you want to move the Quick 'n' Easy(TM) to another room? To another house in another state? Have at it. It's portable like that. Just unscrew and unplug, and then set it up the same way at your new location.
Here's what's included...

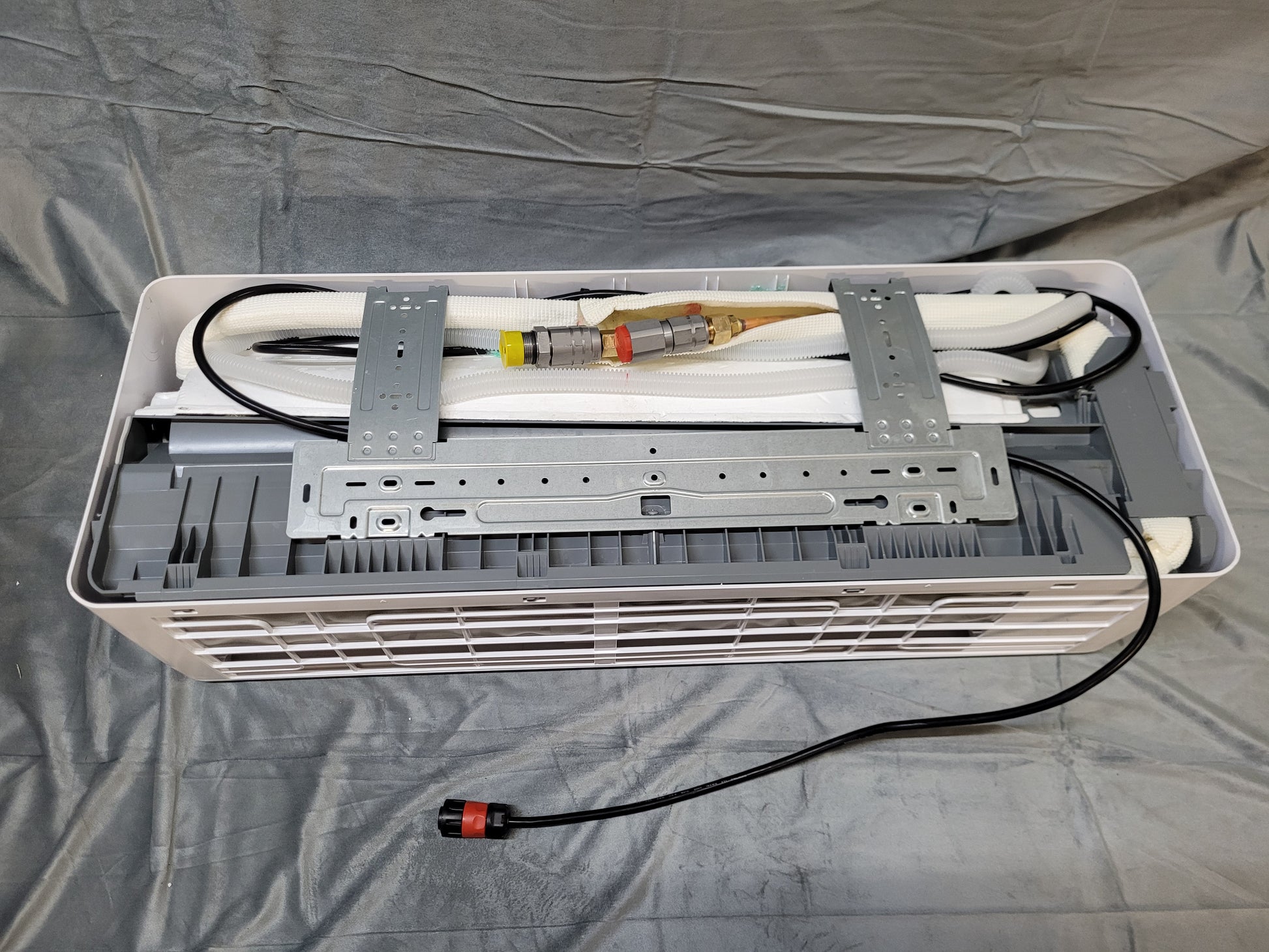

- The system (inside and outside units) for 12,000 BTU cooling/12,500 heating
- Both free cooling and heating (yes, this is a heat pump)
- The Airspool app--schedule, control, and see your solar savings from anywhere in the world where you have either a cellular or an Internet connection
- 110v/115v/120v 15-amp (14 AWG) power cord with plug
- Insulated copper 3-meter line set to connect the two units
- Dust caps for protecting valves pre-insulation
- Remote control with batteries
- 4-meter 4-lead communication control wire between indoor and outdoor unit
- 10' condensate hose
- 2" wide x 50' long non-adhesive wrapping tape
- Wall flange and putty
- 2 MC4 disconnect tools, extra MC4 connectors
- Condensate hose
- Thorough native-English installation and maintenance instructions
- Discounted shipping--enter your location, guaranteed under $100 for delivery within the contiguous United States.
- Risk-free 1-year buy-and-try--fully refundable for a full year if you're not delighted with the performance of this unit

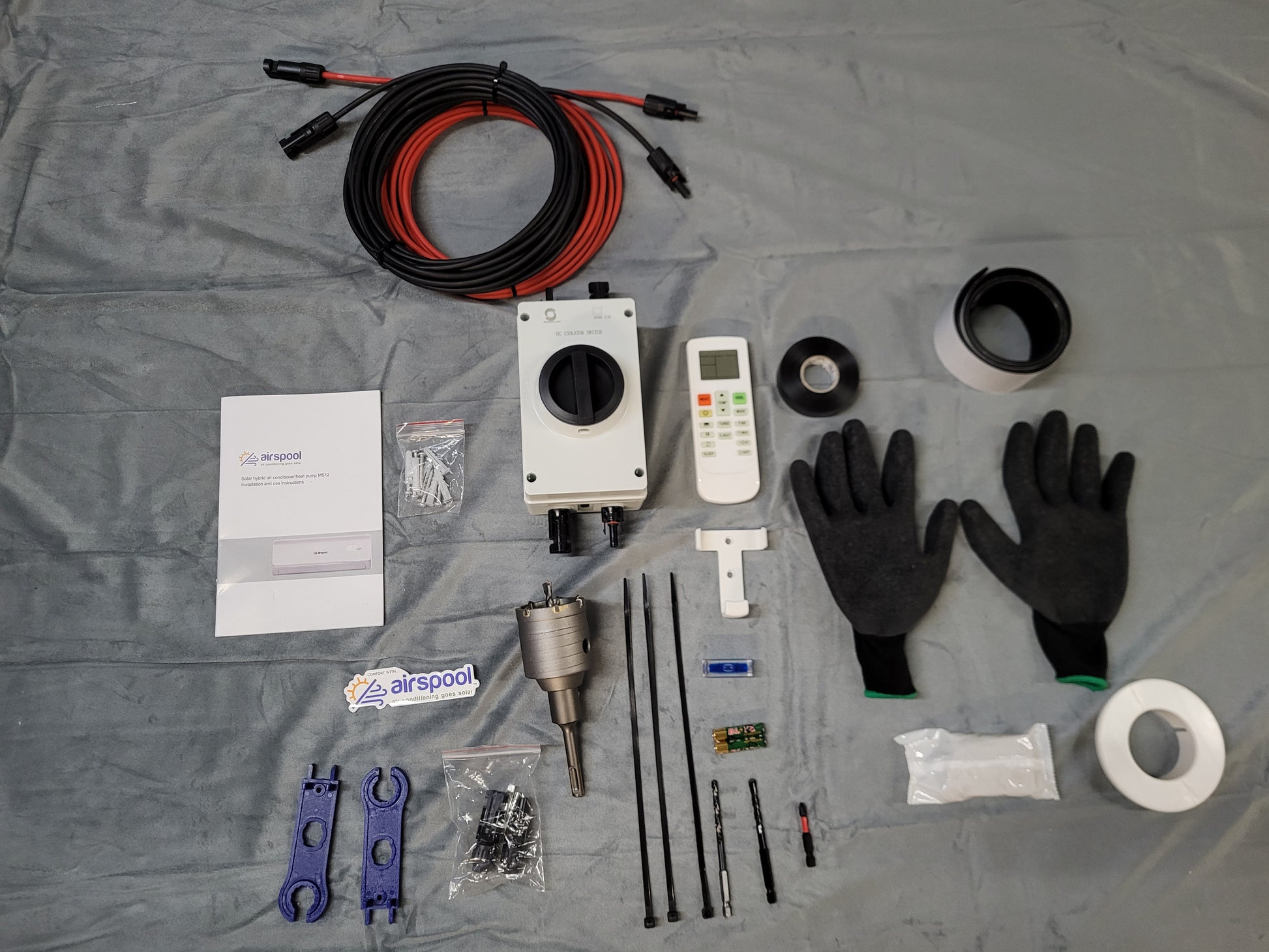

Finally, these specific Quick 'n' Easy exclusives are your inclusives. We give you...

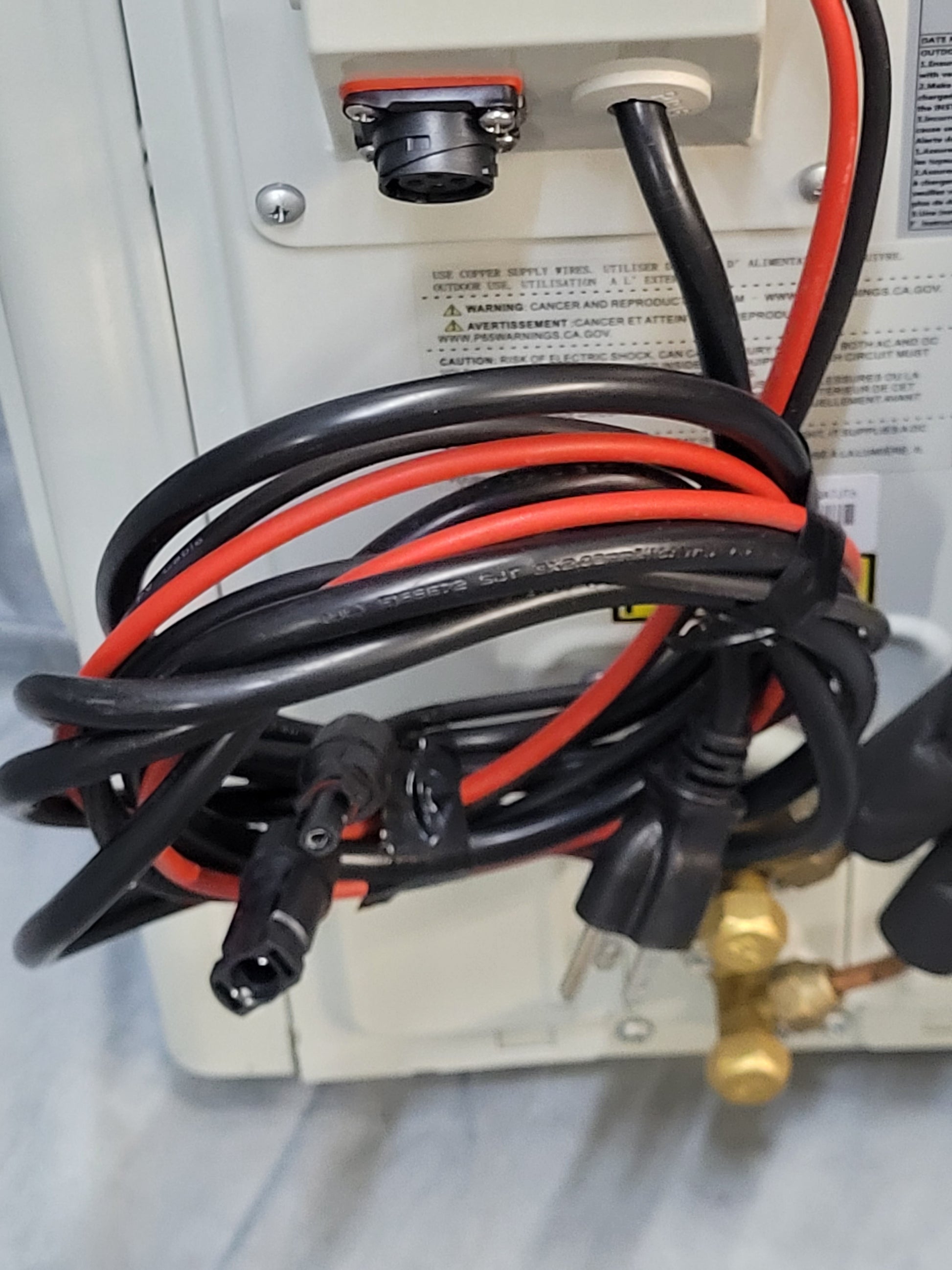

- The solar whips--4 ft. ($18.90 value)
- The DC isolator box ($33,60 value)
- 10m of solar wire ($45.65 value)
- Electrical tape (for sealing the insulation), zip ties (for keeping the line set in place, gloves (to more easily grip the self-sealing quick connectors), 36" of insulation for covering the connectors and the line set near them, a hole saw for your drill (for passing the line set through the wall, whether it's stucco, concrete, brick, or wood), the correct-sized drill bits and a Phillips screwdriver bit (for setting the inside unit's mounting plate and the holder for the remote), and a level ($75 value for all of these goodies)

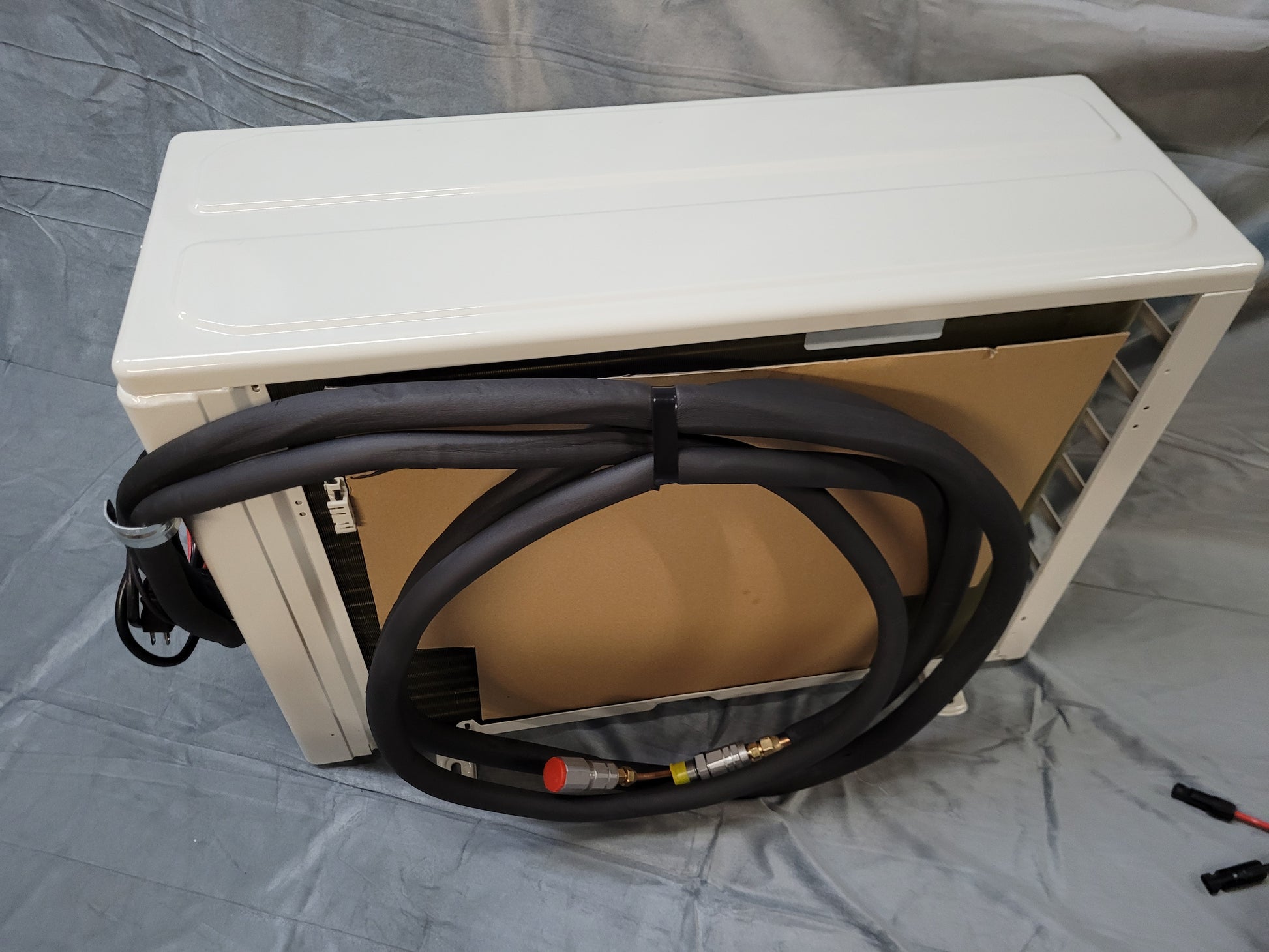

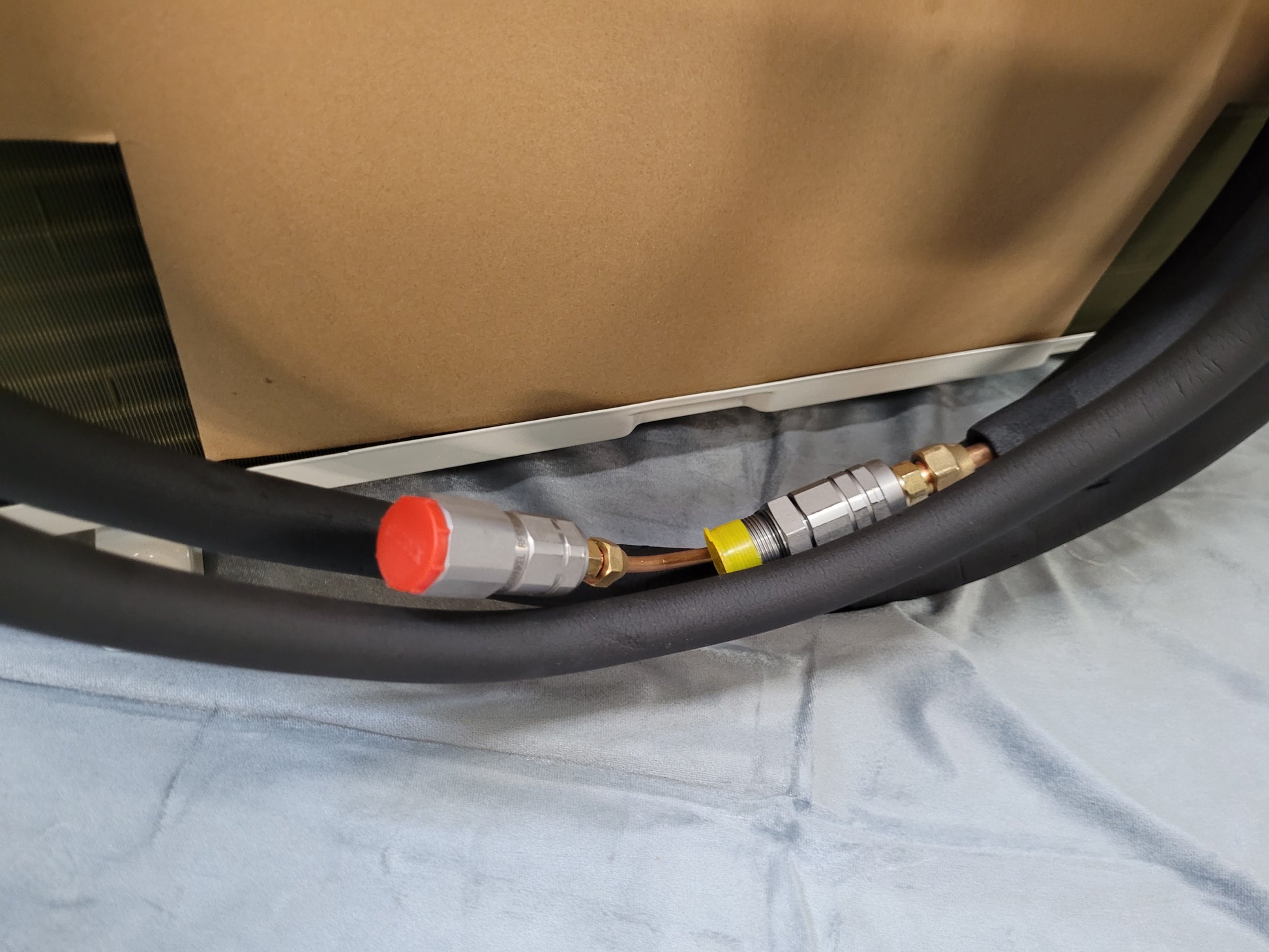

- The pre-installed plug-and-play twist-to-connect-in-5-minutes line set, communications control wire, and power cord
The whole kit and caboodle and then some. Oh, and importantly, once we do all of this pre-installing and pre-charging behind the scenes for you, we test-run your unit to make sure everything's up to snuff before shipping, so you're ensured everything is working correctly.
What's not included? The solar panels and solar mounting hardware. You'll need around 1,500w of solar. We don't offer these (as of now) because they're big, heavy, glass, and can't ship via UPS like the rest of the unit. We'll work to put you in touch with someone near you that can help with these. As of now, the solar panels should be around $600 plus mounting hardware.
So much free cooling. So little time, effort, money, and anxiety from doing it yourself, and no time, effort, money, or anxiety from begging a handy friend or hiring a 'contractor.'
Give our patent-pending, award-winning, soon-to-be-cherished-by-you Quick 'n' Easy system a whirl risk free. In addition to a 3-year parts, 5-year compressor warranty, this system also has a 1-year buy-and-try guarantee. Return it with no shipping charge and get all of your money back if it doesn't exceed your expectations. The Quick 'n' Easy is true DIY solar air conditioning.
Search 'Airspool Quick 'n' Easy' on YouTube to see how the connection is only 5 minutes and hear from others who have one.
Shipping & Returns
Shipping & Returns
UPS shipping for domestic shipments. International carrier varies. All products feature a 365 buy-and-try guarantee.
Dimensions
Dimensions
For detailed product information, including dimensions, see https://airspool.com/the-details.
Care Instructions
Care Instructions
The indoor unit's washable filter should be cleaned around once per quarter year. The coils on the indoor and outdoor unit should be cleaned as necessary. In most environments, once every 5 years is sufficient. Dusty and/or humid areas may require more frequent coil cleaning. Cables should be placed in conduit for best protection from the elements. Disconnects are are free.
We bought this unit to heat/coil a small greenhouse and so far in the depths of winter the plants are happy!
Easy install.
I was a little concerned at first at my ability to assemble this. I am an avid DIY-er and I can say with confidence that I stared at the box for a few days before finally opening it to get started. They are not kidding when they say literally five minutes to assemble (actual mounting and everything else might take a little longer) but it really was as easy as mount, uncoil, connect, and plug in.
I already tested the unit and my solar panels haven't arrived yet, but this unit is awesome. Much easier than I expected and the instructions they provided were perfect.
My home HVAC has resistive heating coils to heat the house during the winter. This is a very expensive type of heating system. My heating costs were higher than my summer cooling costs. Normal KWh use without heat is 10~15KWh per day. Using the resistive heating, my use went to well over 45KWh per day. Heating with the Airspool Mini-Split, my electric use is less than 1/3rd the cost of the large HVAC unit. Now that I have my solar panels set up, my commercial power use will drop even more. I hope to see similar results come summer here in Florida. Installation of the unit itself was easy. The most difficult part was that I had some shelves that were next to permanently mounted on the wall where I needed to put the mini-split head unit. It took many more hours to get those out of the way, compared to the 30 minutes to hang the head unit. Setting up the outside unit was even quicker, and yes, using the included gloves, the Freon connections can easily be fully connected by hand, no tools needed. The only question is how long will the unit last? That I can't answer, but with how well it works right now, I hope I have many many years with it. It's also extremely quiet. At first, I thought there's no way this is going to output enough air to heat or cool my homes living area. That's totally wrong. The volume of air is more than enough to not need a high speed noisy fan. The unit looks great and works great. One of the best buys I've ever made for my home, and being on solar is just that much better.
It took me about 45 minutes to install this unit. Super easy and easy to read instructions. Have the unit plugged in at the moment and building the structure for the solar array so I can tap the full potential of this unit. Extremely satisfied at this point.
